1. Working Principle
The aluminum anodizing line operates based on an electrochemical oxidation process:
Aluminum or aluminum alloy workpieces act as the anode
Inert materials such as lead plates or graphite serve as the cathode
The system operates in electrolytes such as sulfuric acid, oxalic acid, or chromic acid under DC power
During the process:
The anode undergoes oxidation, forming an aluminum oxide (Al₂O₃) layer
The cathode undergoes reduction, releasing hydrogen gas
By precisely controlling:
Current density
Anodizing time
Electrolyte temperature
The coating thickness can be adjusted:
Standard: 5–20 μm
High-end applications: ≥50 μm

2. System Configuration
A complete aluminum anodizing line consists of four core systems:

(1) Automatic Conveying System
Chain, belt, or overhead conveyor types
Enables full-process automation
Reduces manual handling and product damage
Ensures continuous production

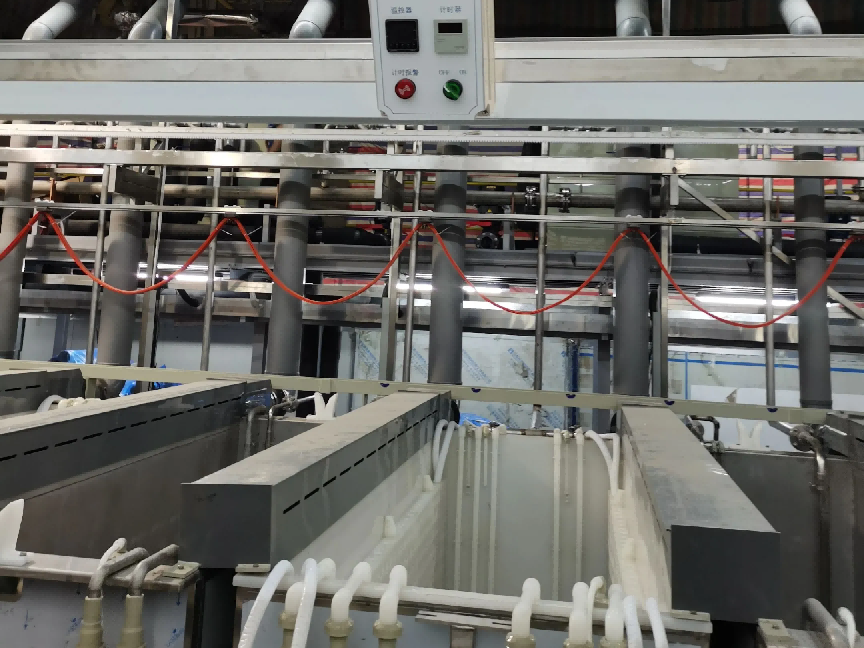

(2) Process Tank System
Arranged in a standard process sequence:
Degreasing → Rinsing → Pickling → Rinsing → Anodizing → Rinsing → Coloring → Sealing → Rinsing
Each tank is equipped with:
Temperature control
Agitation system
Filtration system
This ensures stable electrolyte conditions and consistent coating quality.

(3) PLC Intelligent Control System
Precise control of current, voltage, temperature, and time
Real-time monitoring of process parameters
Automatic adjustment to optimize performance
Reduces human error and improves consistency

(4) Auxiliary Systems
Including:
Electrolyte dosing system
Wastewater treatment system
Exhaust gas treatment system
Ensures environmentally friendly and compliant production.

3. Advantages
Compared with traditional manual anodizing:
High automation (24/7 continuous operation)
Increased production efficiency
Consistent product quality
Reduced labor and chemical consumption
Improved operational safety
Flexible customization for various production needs
Suitable for:
Small-batch customization
Mass production

4. Maintenance Recommendations
For stable long-term operation:
Replace aged cathode materials regularly
Monitor and renew electrolytes
Clean tank impurities
Inspect conveying and control systems
Prevent parameter deviations affecting coating quality

5. Conclusion
The aluminum anodizing line drives the industry toward high efficiency, precision, environmental sustainability, and large-scale production. It is a key solution for enhancing product quality and competitiveness in modern manufacturing.
