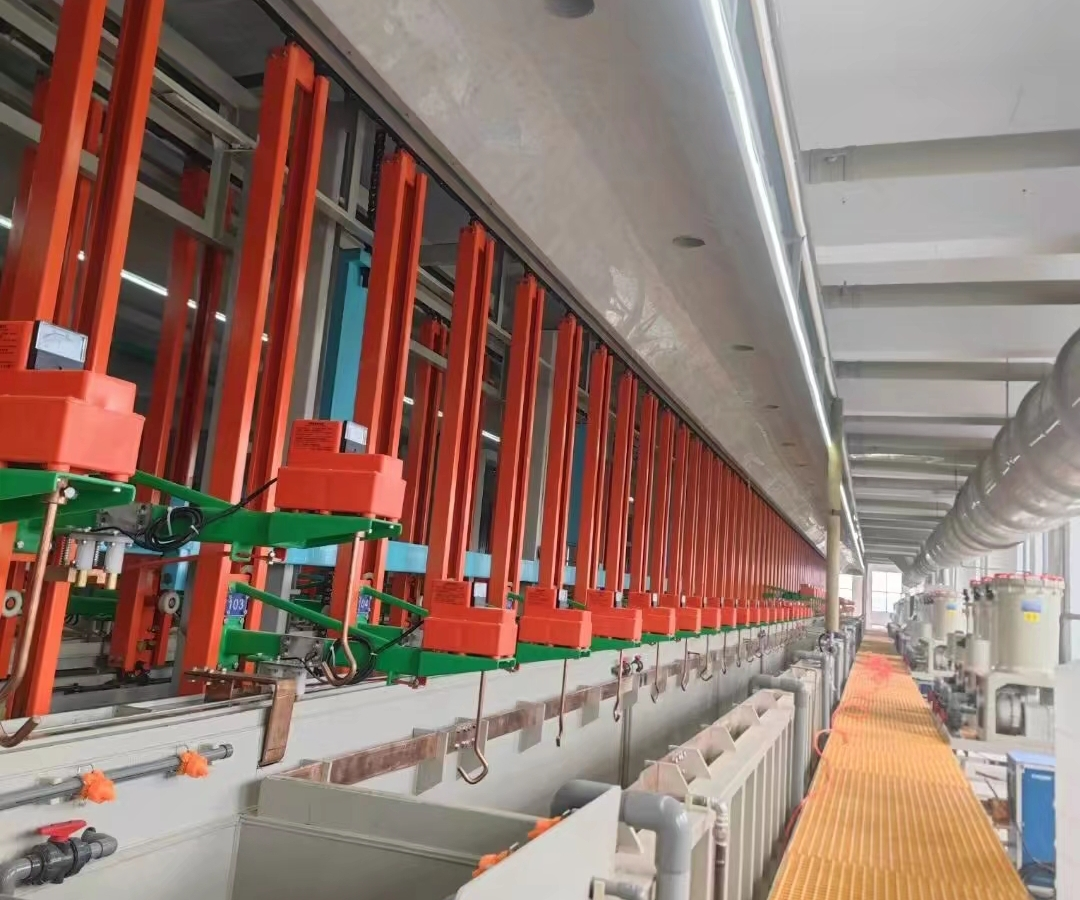

Automatic Copper Electroplating Equipment | Automated Copper Plating Line | High-Precision Electroplating Solution
1. Product Overview
Automatic Copper Electroplating Equipment is designed to deposit a uniform and dense copper coating on metal or non-metal workpieces through a fully automated process.
By integrating pretreatment, electroplating, and post-treatment into one system, it significantly improves conductivity, corrosion resistance, and surface finish, while ensuring consistent quality and high productivity.

2. Working Principle
The system operates based on electrochemical deposition:
The workpiece acts as the cathode
Copper anodes (soluble or insoluble) serve as the anode
Both are immersed in a prepared electrolyte solution
When DC power is applied:
Copper dissolves from the anode into ions
Copper ions migrate toward the cathode
They are reduced and deposited as metallic copper
This results in a uniform and dense copper coating.

3. Key Components
(1) Automatic Control System
PLC + touchscreen interface
Pre-programmed parameters
Real-time monitoring and adjustment
Enables unattended operation

(2) Plating Tank System
Corrosion-resistant materials (PP/PVC)
Equipped with heating, circulation, and filtration systems
Ensures stable plating conditions

(3) Power Supply System
High-stability DC power supply
Constant current/voltage control
Guarantees uniform deposition

(4) Pretreatment Module
Degreasing
Rust removal
Surface activation
Improves coating adhesion.

(5) Post-treatment Module
Rinsing
Drying
Passivation
Enhances corrosion resistance and appearance.

(6) Conveying System
Automatic rack or conveyor system
Supports continuous production

4. Advantages
High Efficiency
3–5 times higher productivity
Continuous batch production
High Precision
Thickness tolerance within ±0.001 mm
Suitable for precision components
Environmental Performance
Waste liquid recycling system
Reduced chemical consumption and pollution
Safety
Fully automated operation
Minimizes operator exposure to chemicals

5. Customization Options
The system can be customized based on:
Tank size
Automation level
Plating speed
Coating thickness
Suitable for various production scales and requirements.

6. Applications
Printed Circuit Boards (PCB)
Automotive components
Hardware products
Aerospace industry
Precision electronics

7. Conclusion
Automatic copper electroplating equipment is a key solution for achieving high efficiency, precision, and sustainability in modern manufacturing. With ongoing advancements in automation and environmental technologies, it continues to drive the electroplating industry forward.
